Easy installation SAE Flywheel Coupling RB Motor To Hydraulic Pump Coupling

  • 1
  • 2

Brand Name : REIJAY

Model Number : RB

Certification : Provide

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 sets per month

Delivery Time : Negotiable

Packaging Details : Yes

KEY WORDS : Hydraulic transmission system

Advantages : Short installation length

Application : construction machinery engine

certification : ISO9001/ITS16949

warranty : 2years

Product name : Sae Flywheel Coupling

Installation : video guide

Material : rubber and steel

Feature : Easy installation

Customizable : Support

Contact Now

Short installation length Easy installation Sae Flywheel Coupling for engine and hydraulic pump drive connections

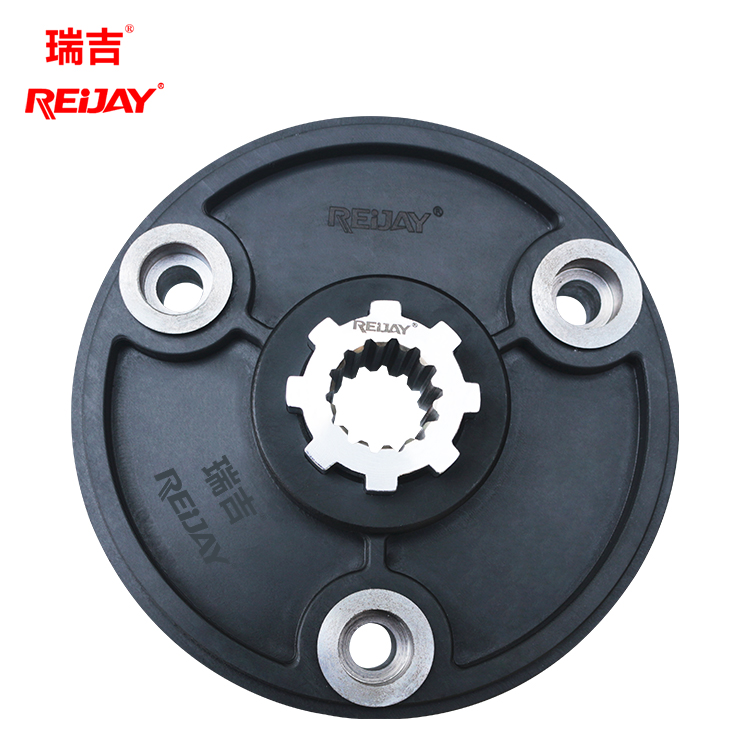

Sae Flywheel Coupling is a torsionally rigid curved gear flywheel coupling made of nylon/steel material, suitable for the transmission connection between diesel pilot and hydraulic pump. FLE-PA connecting flange is made of nylon reinforced with glass weave. The bushing is made of steel with externally curved teeth with high mechanical strength and thermal stability. The installation length of the Sae Flywheel Coupling is extremely short, making it easy to install without the need for special alignment tools.

Shanghai Reijay Hydraulic Transmission Technology Co. Ltd. was established in 2003. We are committed to providing the most advanced mechanical transmission components, hydraulic group accessories and heat exchange products (heaters and coolers). To better satisfy special demands from customers, we can provide non-standard design, product invention, shafting torsional vibration calculation, simulation system testing and related professional software support.

Technical Specifications

Size Bolt Mounting Center Circke D1(mm) Outer Diameter D(mm) Bolt Hole Diameter Quantity (mm) Location Dimension
96 50 96 4x8 70
125 100 125 3x8 80
135 100 135 3x8 135
150 130 150 5x8 106
152 122 152 3x12 105
155 125 155 3x12 155
210 185 210 3x10 125
220 165 220 6x10 220
220 185 220 3x12 125
170 140 170 3x14 170
209 165/170 209 6x16/3x16 209
RB Series FL flywheel Coupling Technical Parameter
Size Prebore (mm) Dimension (mm)
min max B D2 L1 L2 L3 L4 L5
42 20 42 65 100 42 35 42 20 13
48 20 48 68 100 50 43 50 20 13
65 25 65 96 132 55 49 55 27 21
65 25 65 96 172 55 46 55 31 22
80 30 80 124 172 55 46 55 30 21
100 38 100 152 265 70 78 70 35 21


Easy installation SAE Flywheel Coupling RB Motor To Hydraulic Pump Coupling

Our Strategic Partners

Easy installation SAE Flywheel Coupling RB Motor To Hydraulic Pump Coupling

Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.

FAQ

Q: Who are we?

We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.

Q: How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment

Q: What information should I tell you to confirm the product?
Motor drawing or other technique parameters

Q: What can you buy from us?

Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.

Q: Why should you buy from us, not from other suppliers?

We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.

Q: What is your product warranty period?
We offer 2-10 years of service life since the vessel departure date left China.

Q: What are your terms of payment?
Payment≤ 1000 USD, 100% in advance. Payment≥ 1000 USD, 30% T/T in advance, balance before shipment. We accept the LC, also.

Q: What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；

Accepted Payment Currency: USD, EUR, HKD, CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;

Language Spoken: English, Chinese, Spanish
